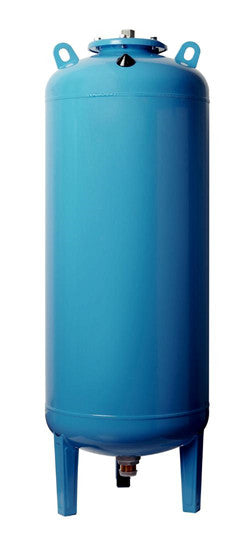

Ibaiondo 08035010 300 Ltr AMR DUO Potable Expansion Vessel

Part No: 08035010

Model: 350 AMR DUO

Click here to download a PDF spec sheet for full product details

Size: 300 Ltr

Suitable for booster sets (suction)

Double stainless steel water connections (AISI 316) which guarantees continuous flow and permanent water renewal.
With respect to atmospheric vessels, they ensure better water quality and keep stable network pressure.
Replaceable bladder, according to EN 13831, suitable for drinking water.
Blue epoxy power coating, special for outdoor (RAL 5012)

Manufactured according to 2014/68/UE directive

• Top supply connection
• Maximum working pressure 10 bar
• Double stainless steel water connection (AISI 316) which guarantees continuous flow and permanent water renewal.
• Pre-charge 3 Bar Nitrogen *
• Temperature -10 + 100 ^oC

• Dimensions D 485 x 805 Height
• 2 x 1 1/2" Water Connections
• High resistant rubber bladder
• Weight: 60 Kilos
• Non replaceable butyle membrane (bladder) according to DIN 4807
• Brass threaded connection
• Special coating against corrosion
• External finish: epoxy powder coating (blue colour), especially for outdoor

* May require adjustment to suit installation. This adjustment must be made with the vessel isolated from the system and prior to filling with water

Approvals:- (Vessel) CE endorsed, TUV

These tanks can be set up with a pump unit and pressure switch etc to reduce the number of starts and stops per hour.  It's function is to act as auxiliary feed tank at the suction of pumps.

The AMR-Duo series tanks are designed to be installed at the lower side of pressure booster systems, as an alternative solution to the conventional open tanks, in order to guarantee the sanitary conditions of the system.

Provided with two water connections of 1 1/2" in stainless steel (AISI 316-L): upper side (water inlet) and lower side (water outlet) to ensure the full flow through.
