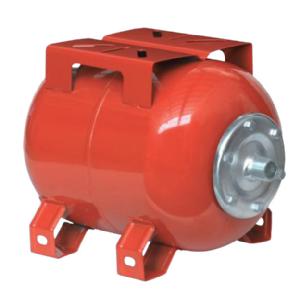

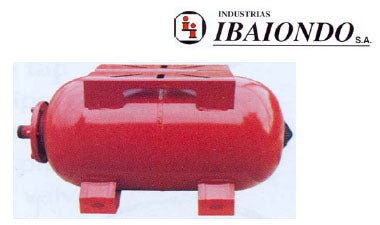

Ibaiondo 03220202 200 Ltr Horizontal Potable Expansion Vessel with pump base

Part No: 03220202

Click here to download a PDF spec sheet for full product details

Size: 200 Ltr HORIZONTAL pump base

• Maximum working pressure 10 bar
• Pre-charge 1.5 bar *
• Temperature range - 10 °C + 100 °C
• Dimensions D 485 x 1320 Length
• Water Connection 1 1/2”
• Weight 49 Kilos
• High resistant rubber bladder

Epoxy powder coating (red colour)
Membrane according to DIN 4807 suitable to contain sanitary water.
Fixed membrane (non-replaceable)

Expansion vessel for hot sanitary water in opened circuits.

* May require adjustment to suit installation. This adjustment must be made with the vessel isolated from the system and prior to filling with water

Approvals:- (Vessel) CE endorsed, TUV

This tank is used in the following installation cases:

Potable water applications, booster sets, borehole pumps etc, expanded water from hot water cylinders and calorifiers.

The tanks can be set up with a pump unit and pressure switch etc to reduce the number of starts and stops per hour.
